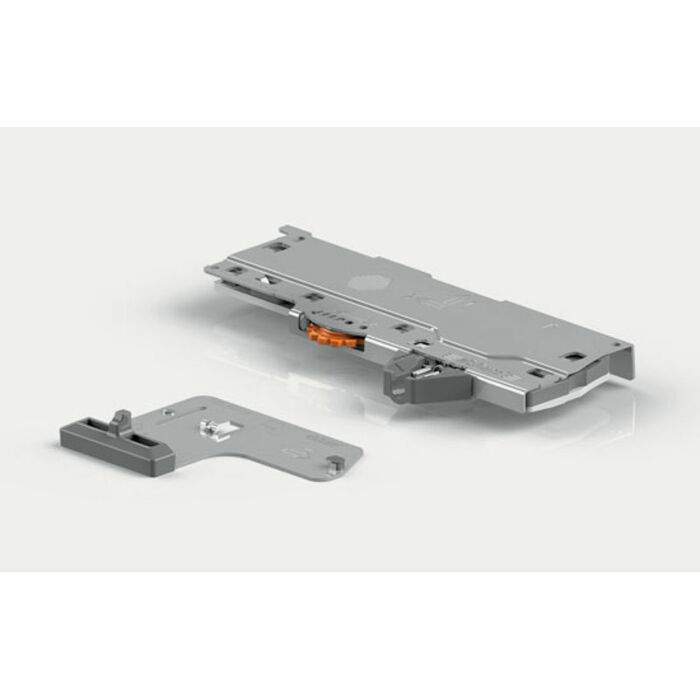

TIP-ON BLUMOTION for MOVENTO
- Details
- More Information
- Reviews
TIP-ON BLUMOTION for MOVENTO provides flexibility by offering the TIP-ON unit in four different strengths.
Use the table below to select the appropriate unit and trigger by finding your drawer runner length and estimating the total weight of the drawer when loaded. A synchronization rod is recommended for all cabinet widths for optimal function
| Optimal Opening and Closing Function | |||||
|---|---|---|---|---|---|
| Drawer Length | Unit | Part Number | Total Weight of drawer, when loaded | ||
| 12" (305) | S1 | T60L7140 | 0-44 lb | ||
| 15"-21" (305-533) | L1 | T60L7340 | 0-44 lb | ||
| 15"-21" (305-533) | L3 | T60L7540 | 44-88 lb | ||
| 18"-24" (457-610) | L5 | T60L7570 | 88-155 lb | ||
- For drawer widths between 12-3/8" and 54-1/2" use MOVENTO TIP-ON synchronization rod KIT. Includes 44" rod and adaptors.
- For drawer widths between 11-11/16" and 12" use TIP-ON synchronication for narrow applications.
| SKU | BIX-TIPON |
|---|---|
| Manufacturer | Blum |
| Manufacturer's Part Number | N/A |
| Max. Drawer Side Thickness | N/A |
| Length | N/A |
| Weight Rating | N/A |
| Manufacturer's Suggested Retail Price | N/A |
