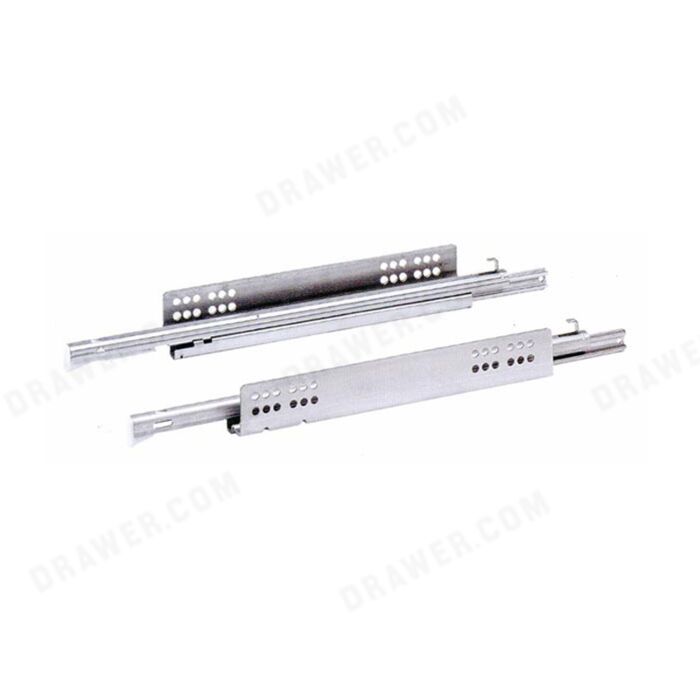

Hettich QUADRO IW20 - 4D Silent System

When purchasing drawers through this website use the following chart to cross reference drawer depth and slide length.

Hettich IW20
For:	Use
Slide Length	Depth
280mm	11.6875
300mm	12.5
320mm	13.25
350mm	14.4375
380mm	15.625
400mm	16.4375
420mm	17.1875
450mm	18.375
480mm	19.5625
500mm	20.375
520mm	21.125
550mm	22.3125
580mm	23.5
600mm	24.3125

• Load capacity 100 lbs K.C.M.A (Kitchen Cabinet Makers Association)
• Silent System: the cushoning system integrated in the QUADRO V6 closes the drawer without a sound - as soft as velvet
• Perfect vertical and lateral stability. The robust, resilient tracks ensure optimal runner action through precison-guided steel balls.
• Maintenance-free through self-cleaning ball tracks.
• The integrated roll-out prevention stop accidental opening
• Slide-on assembly – simply place the drawer on the runners and push in for connection.
• Flexibility through interchangeability – Quadro partial and full extension runners interchange without altering drawer dimensions.
• For 5/8” (16 mm) drawer material thickness and 1/2” (12 mm).
• Sold by the pair
• REQUIRES 1 pair locking devices (Optional)
